Project Overview

In this project, we build a real-time cloth simulation by the masses and springs data structure. We start first by building the grid of masses and springs of different types. And then we apply simulation based on the Newton’s law (calculating each spring mass’s external and internal force), and update the position accordingly using verlet integration. And then we apply self-collisions and collisions with other objects such as sphere and planes to achieve more realistic simulation effect. At the end of the project, we came into contact with a new graphics rendering method, shader. By modifying vertex shaders and fragment shaders code, we have implemented several traditional GLSL shader programs, including diffuse shading, Blinn Phong shading, texture mapping, displacement and bump mapping and environment mapped reflections.

Part 1: Masses and springs

Screenshots

Below are some screenshots rendered from pinned2.json file which clearly shows the structure of point masses and springs. We can cearly see the different types of springs (structural and bending constrains are totally overlapped. ) and point masses.

Comparison Between different Constraintes

According to the definition of the three types of the constraints, we can see that the normal one (with all three constraints) have both the diagonal springs and the one which is parallel to the x or y axis. However, we can only see the diagonal springs with the shearing constraints only. And we can see the diagonal springs are moved without shearing constraints. The two left constraints (structural, bending) both depict related springs between point masses that locate nearby or 2 distance away from each other along axis.

Type	Picture
With All

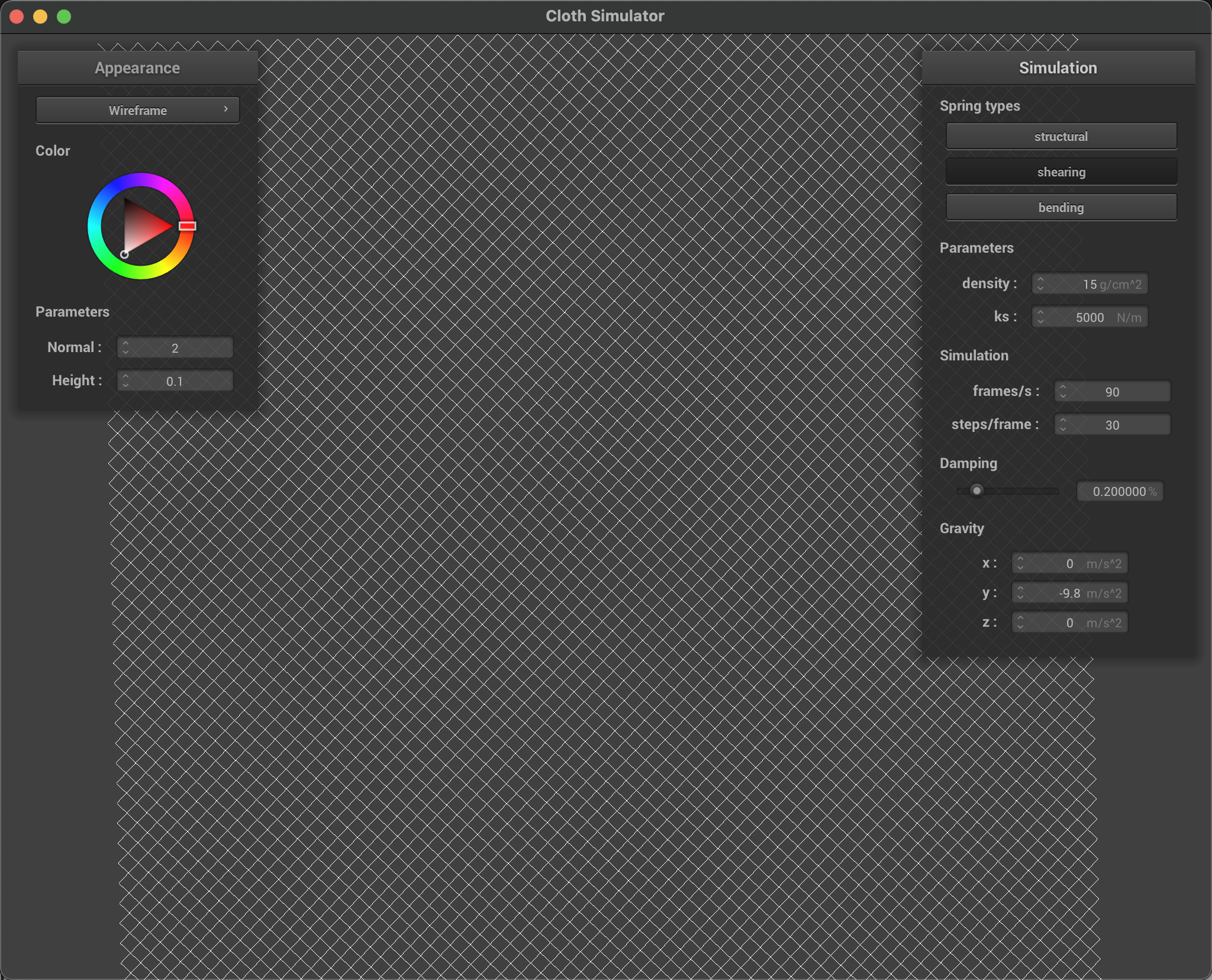

Only Shearing

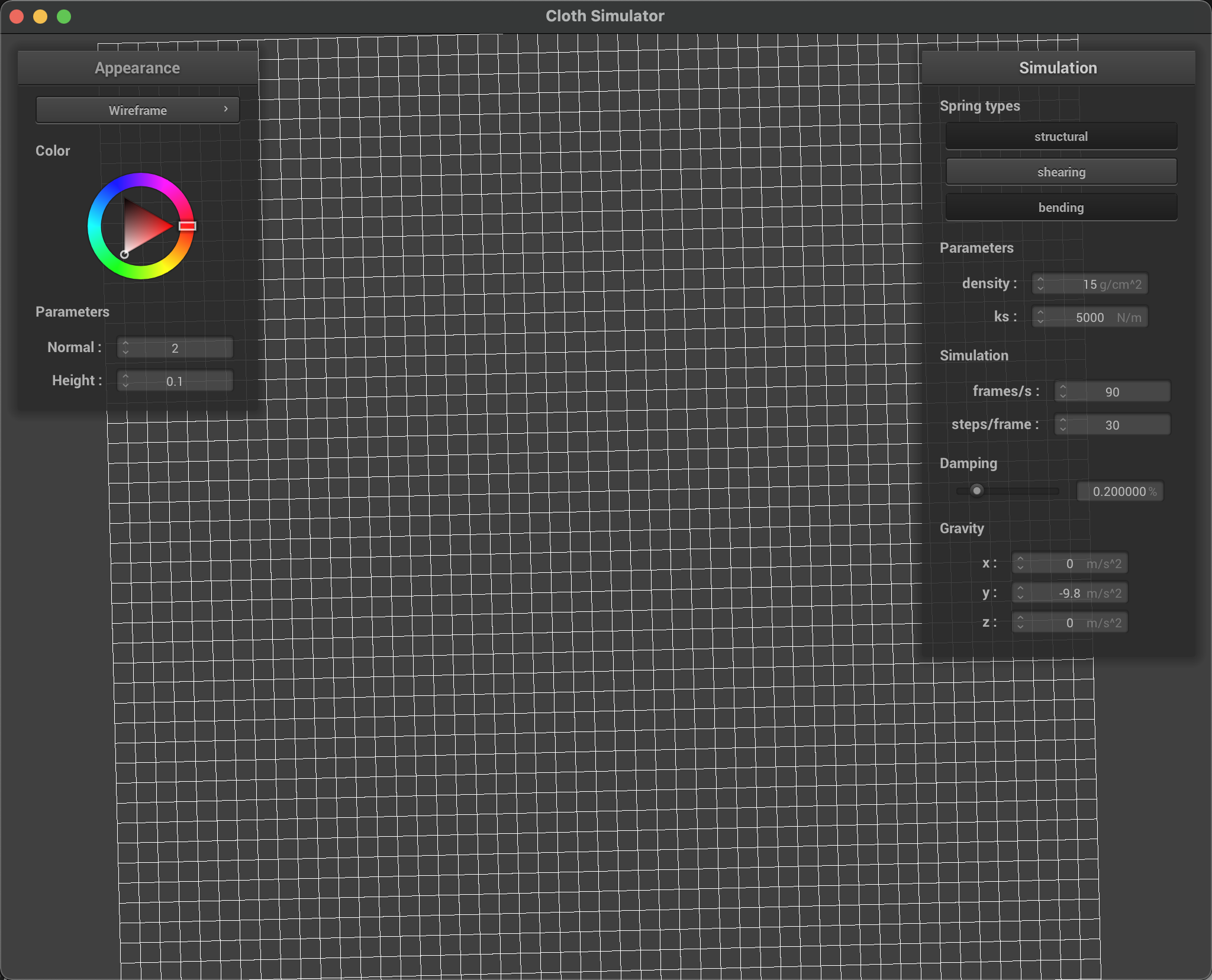

Without Shearing

Part 2: Simulation via numerical integration

Experiment

In this section, we conduct experiment on changing the parameters and show the corresponding simulation results.

Change the spring constant ks

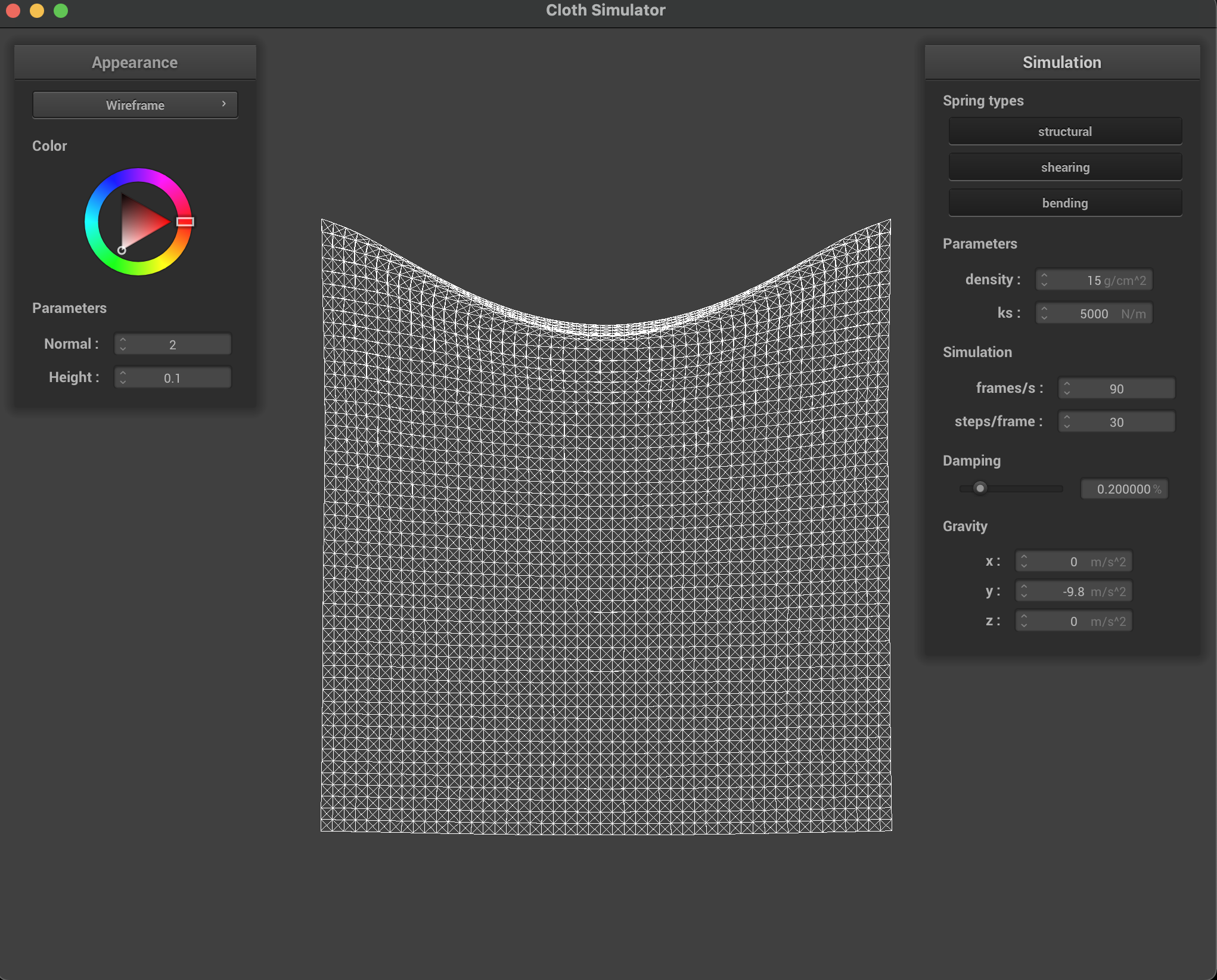

ks=100	ks=5000	ks=50000

We can see from the figure above that the balance point of the cloth collapse is getting lower as the constant ks increases. This is caused by the fact that the spring force to support the cloth will increase when the constant ks increases. Therefore, when the constant decreases, the cloth will collapse and fall down to a lower balance point.

Change density

density=1	density=1500

Similar to changing the spring constant, we can see the balance point get lower as density increases. The mass of a point mass increase as the density increases. Therefore, the external force F=ma* will increase as m (mass) increases, which produce the similar results as ks increases (the internal force by the spring increases).

Change damping

Changing damping does not affect the force. Therefore, the balance point of the cloth (final real estate status) will not change. We can see from our simulate function that the parameter damping only changes the position update process. To be more specific, damping affects the weight of the difference between a pointmass’s current position and last poisiton. The damping simluate the loss of energy. Therefore, larger damping will result in slower simulation and more stable final state. And smaller damping results in faster swing but less stable final state (need more time to converge to a immobile state.)

The extreme case are interesting. We will find the cloth keep swinging back and forth when we set damping=0, which means there are no energy loss due to factors such as friction. This is straightforward because the sum of Kinetic and Potential Energy will remain a constant in the whole process.

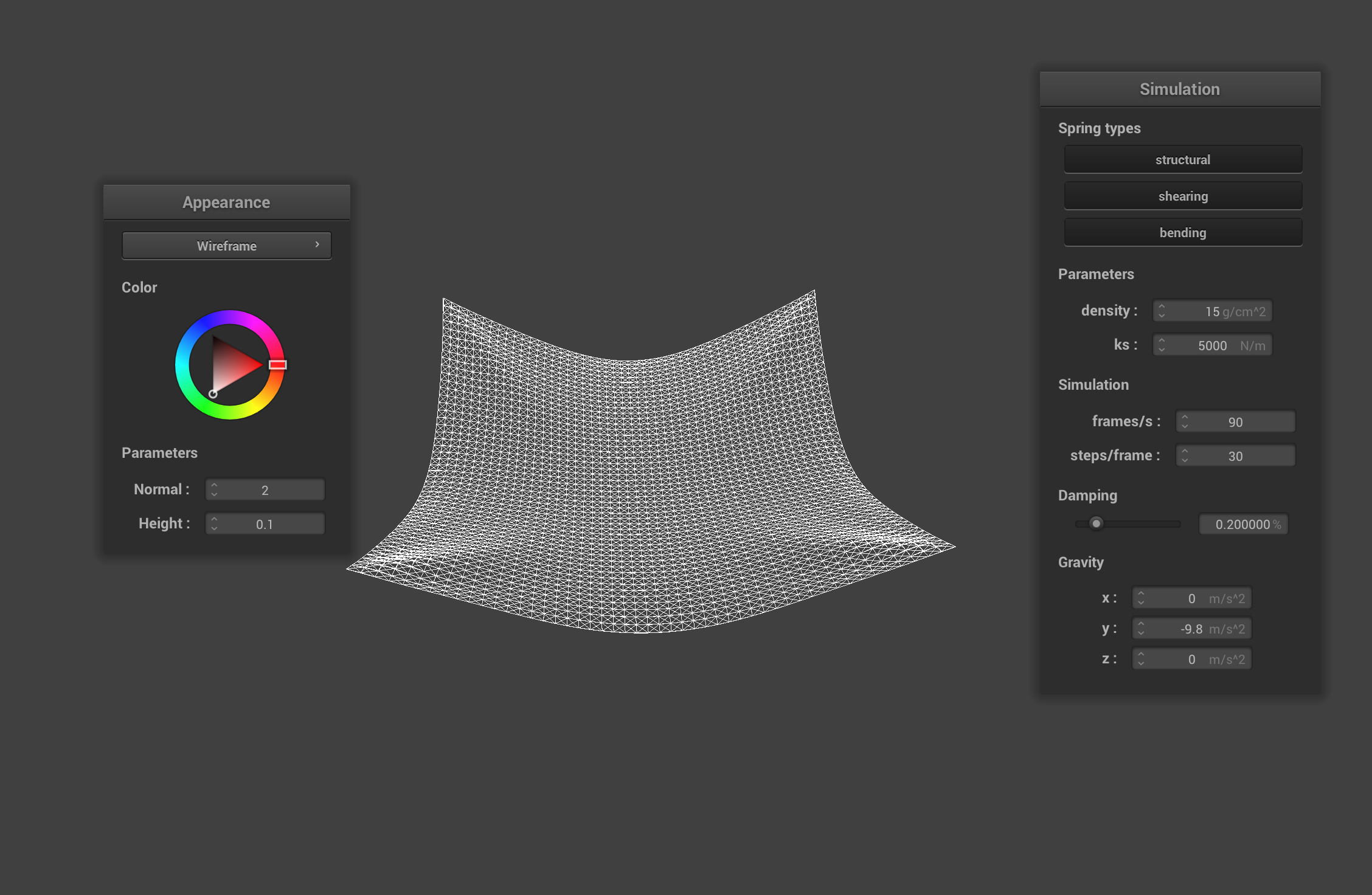

Screenshot: pinned4.json

Below are the final state of the rendered pinned4.json file. (default parameter)

Part 3: Handling collisions with other objects

Sphere

Below are the screenshots of the final state of the rendered sphere.json file. (ks=500, 5000, 50000)

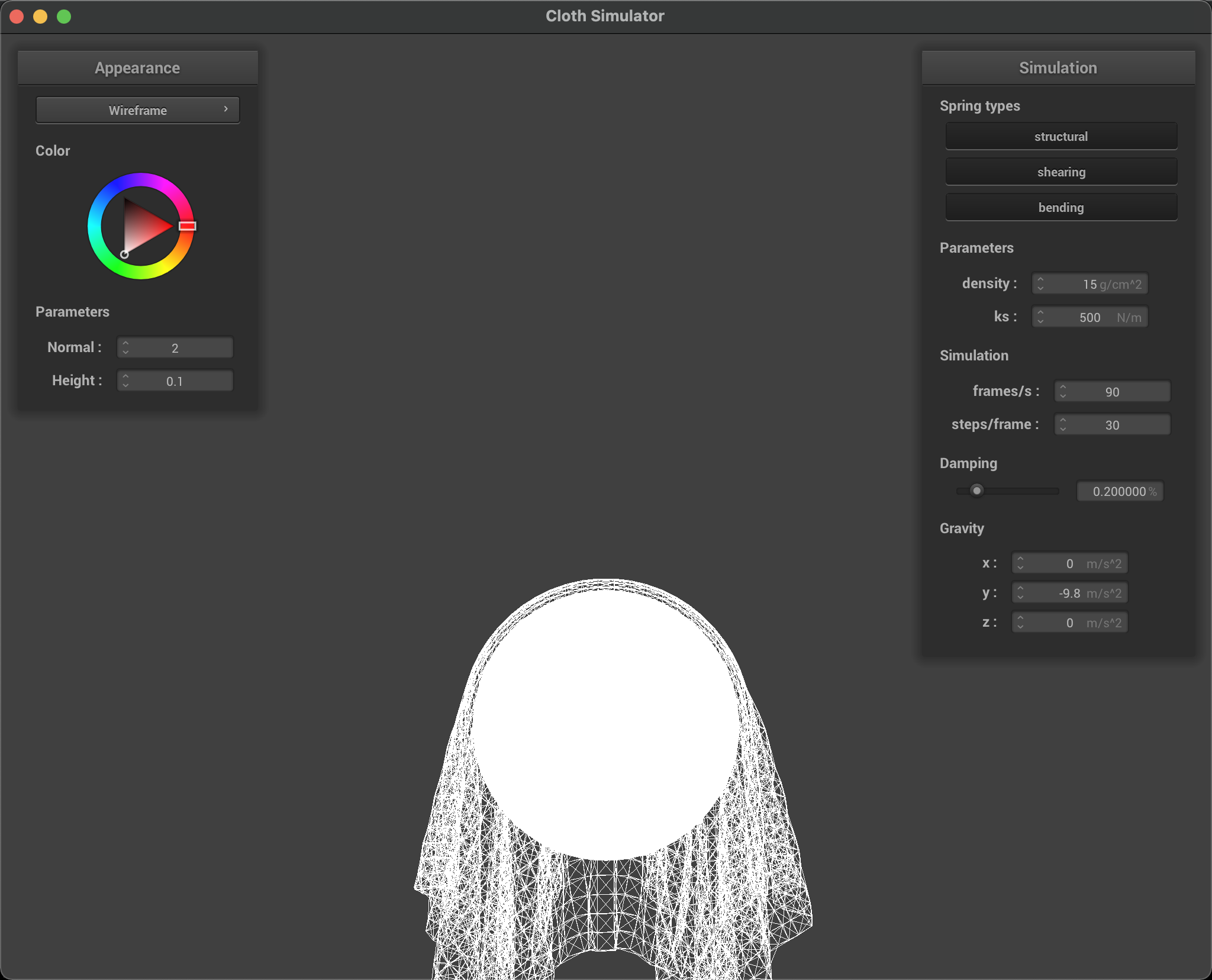

ks=500	ks=5000	ks=50000

We can see from the pictures above that the cloth spreads out at a wider angle after reaching the final state. Because the closth can support itself better when ks increases (lareger force provided by spring). Therefore, the pointmass on the two side (not adhere to the shpere) will balance itself at a larger angle.

Plane

Below are the screenshots of the shaded cloth lying at the plane.

Part 4: Handling self-collisions

Screenshots

The figure below shows the process of the falling and folding of the cloth, starting from an initial state and ending at a restful state at ground. We can see the cloth folds itself finally.

1	2	3	4

Changing ks

The figure below shows the rendered screenshots of the final state of the cloth with different spring constant ks values. We can see the cloth falls itself in a more loose state as ks decreases. This is because the supportive force from the spring decreases as ks decreases, leading to less supportive force and looser state. On the contrary, the cloth will support itself in a higher height with larger ks values.

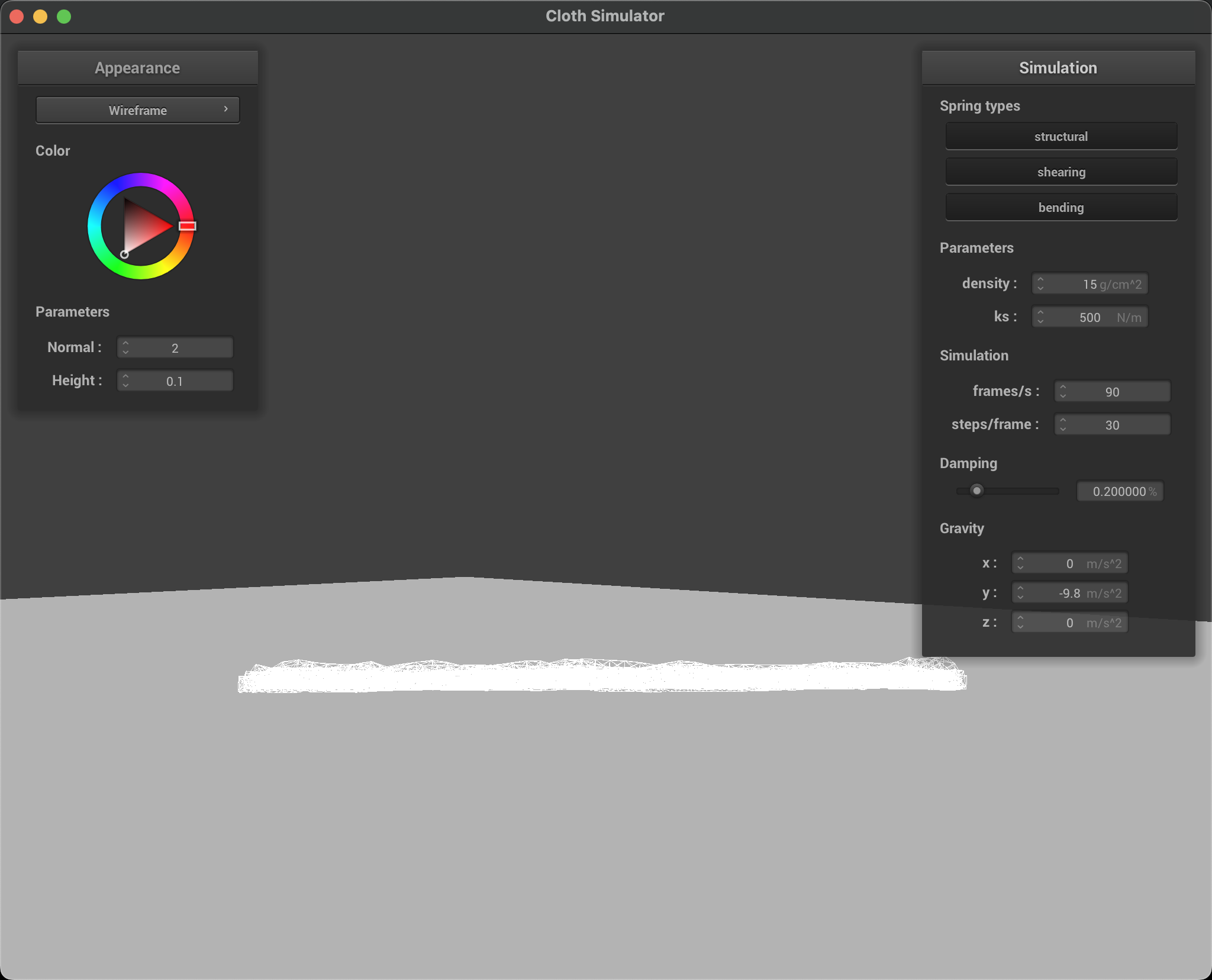

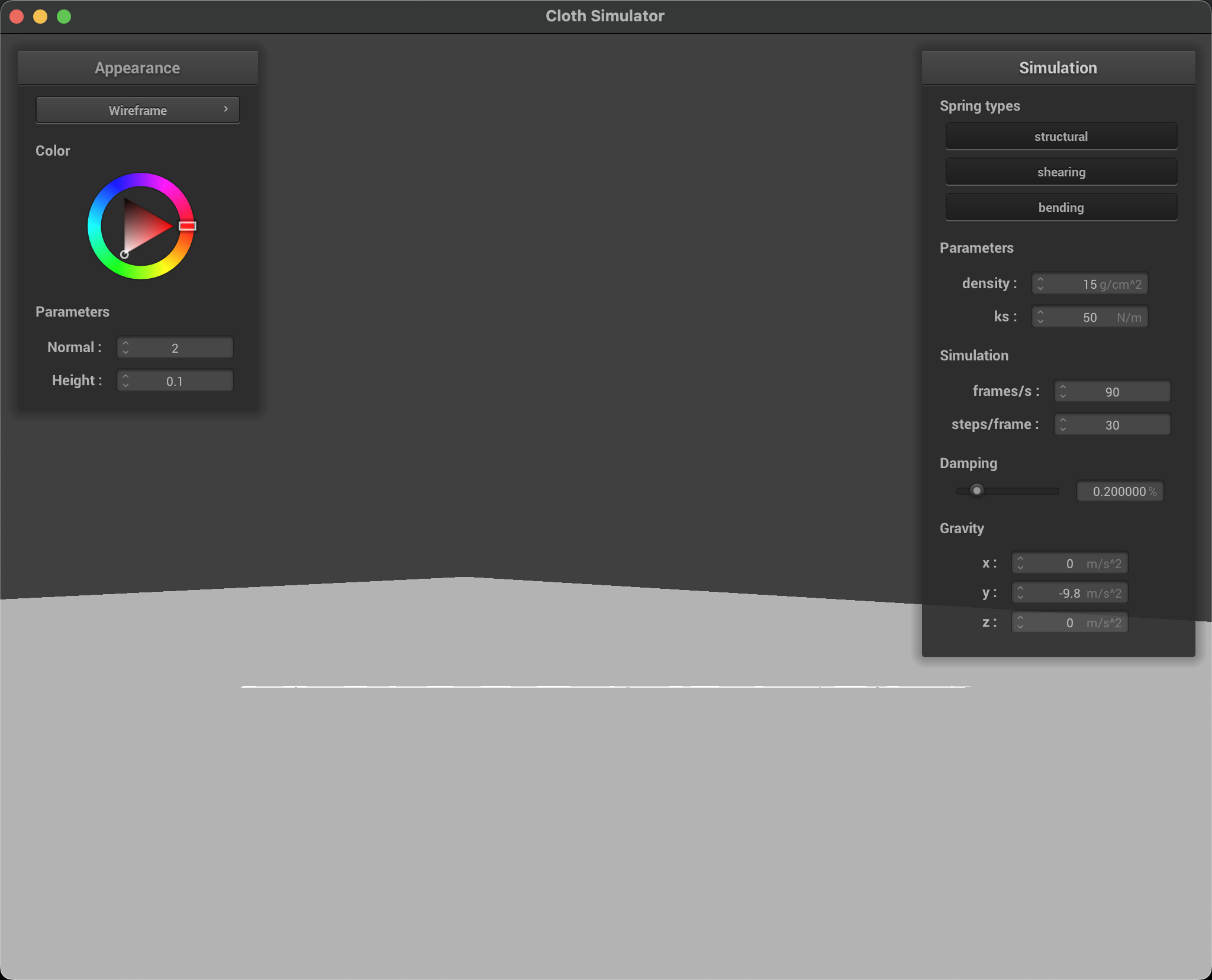

ks=50	ks=500	ks=5000	ks=50000

Changing density

The figure below shows the rendered screenshots of the final state of the cloth with different density. We can see that the cloth folds itself in a looser final state with larger densities. Similar to before, the external force will increase as density increases. Therefore, the cloth will be forced to a more flat state with less internal force (spring) accordingly.

density=1	density=15	density=150

Part 5: Shaders

Explain in your own words what is a shader program and how vertex and fragment shaders work together to create lighting and material effects.

Explanation of shader:

Shader programs is a special method to render material effects on the object surface. It has much less computation than the conventional material rendering based on light tracking. It runs in parallel on GPU and finally takes the form of vector as the output.

How vertex and fragment shaders work together:

Vertex shaders is used to assign the attributes of points in the scene and convert the scene to a unified coordinate system. Fragment shaders is used to assign RGB color attributes to all pixels in the scene. The vertex shader controls the attributes of all vertex pixels in the scene. At the same time, after obtaining the coordinates of the vertices, the fragment shader will interpolate between the vertices to achieve various material effects.

Explain the Blinn-Phong shading model in your own words. Show a screenshot of your Blinn-Phong shader outputting only the ambient component, a screen shot only outputting the diffuse component, a screen shot only outputting the specular component, and one using the entire Blinn-Phong model.

Explanation: Blinn-Phong shading model can simply describe the absorption and reflection of light on the object surface, so that the object surface presents different light and dark degrees. Blinn Phong shading model divides light into three types: ambient light, diffuse light, and special reflections Special reflections is the light that the object completely reflects the light that the light source irradiates on the surface, diffuse light is the light that the object reflects the same brightness in any direction, ambient light is the light that the object surface completely faces away from the light source, but the light reflected by other objects irradiates on the object surface, and then reflects the light through the object. Blinn Phong shading integrates these three lights. It uses the omni light model to process ambient light, the Lambert diffuse light model to process diffuse light, and the Phong reflection model to process spectral reflections. The linear superposition of the three results is the total material shading effect of Blinn Phong shading model.

The parameter we used are ka = 0.1, kd = 1, ks = 0.5, ia = 1, p = 100.

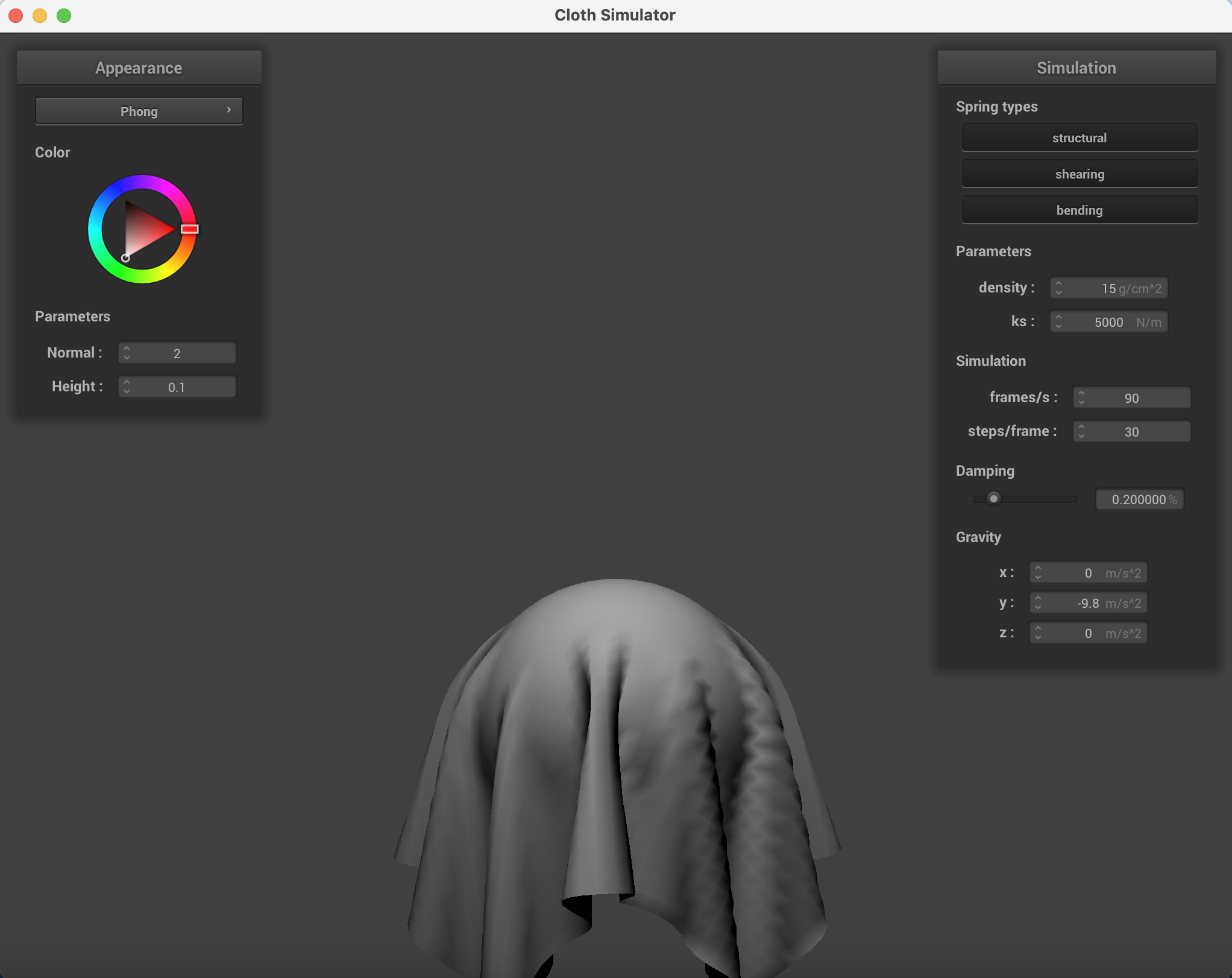

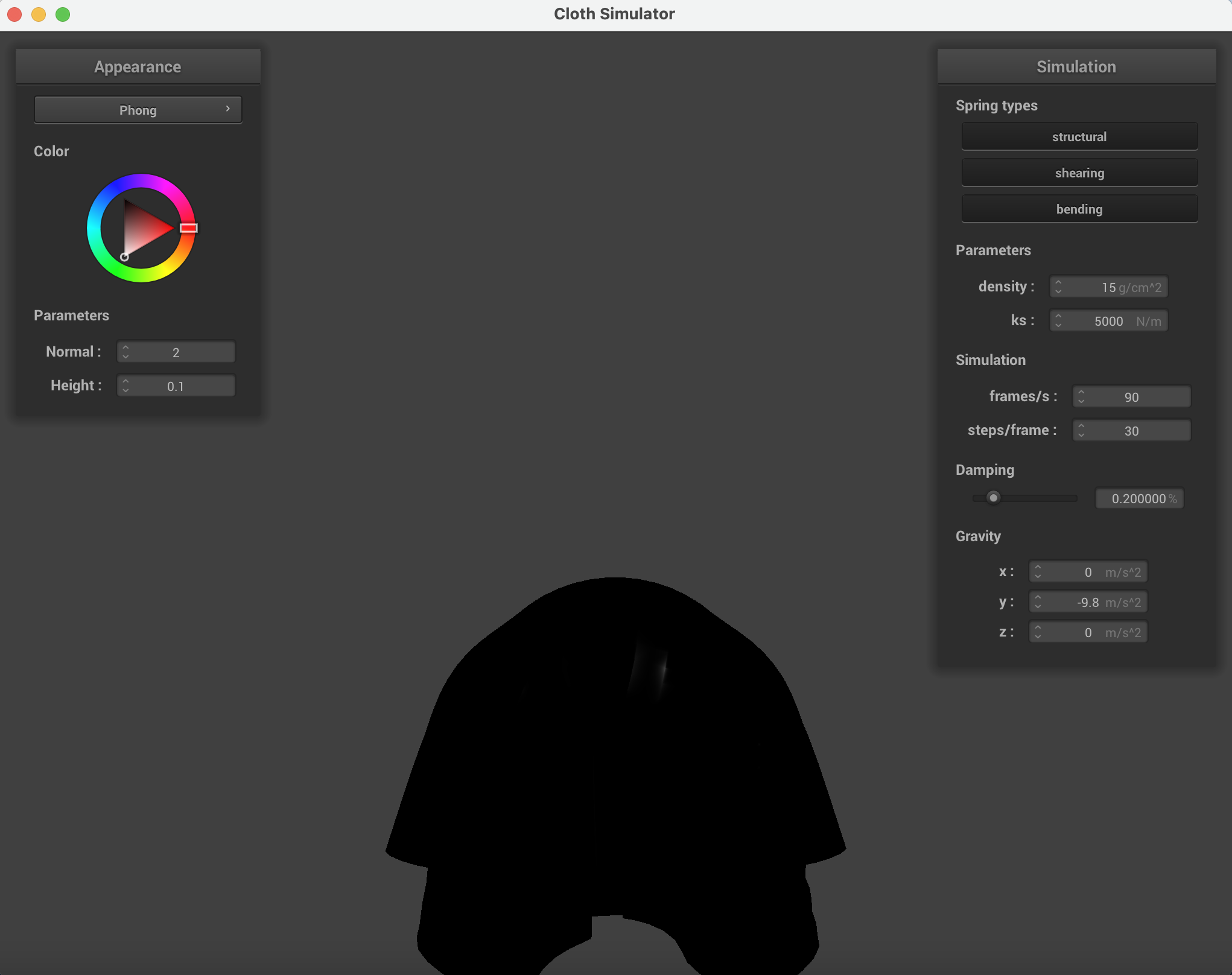

Only Ambient Component	Only Diffuse Component

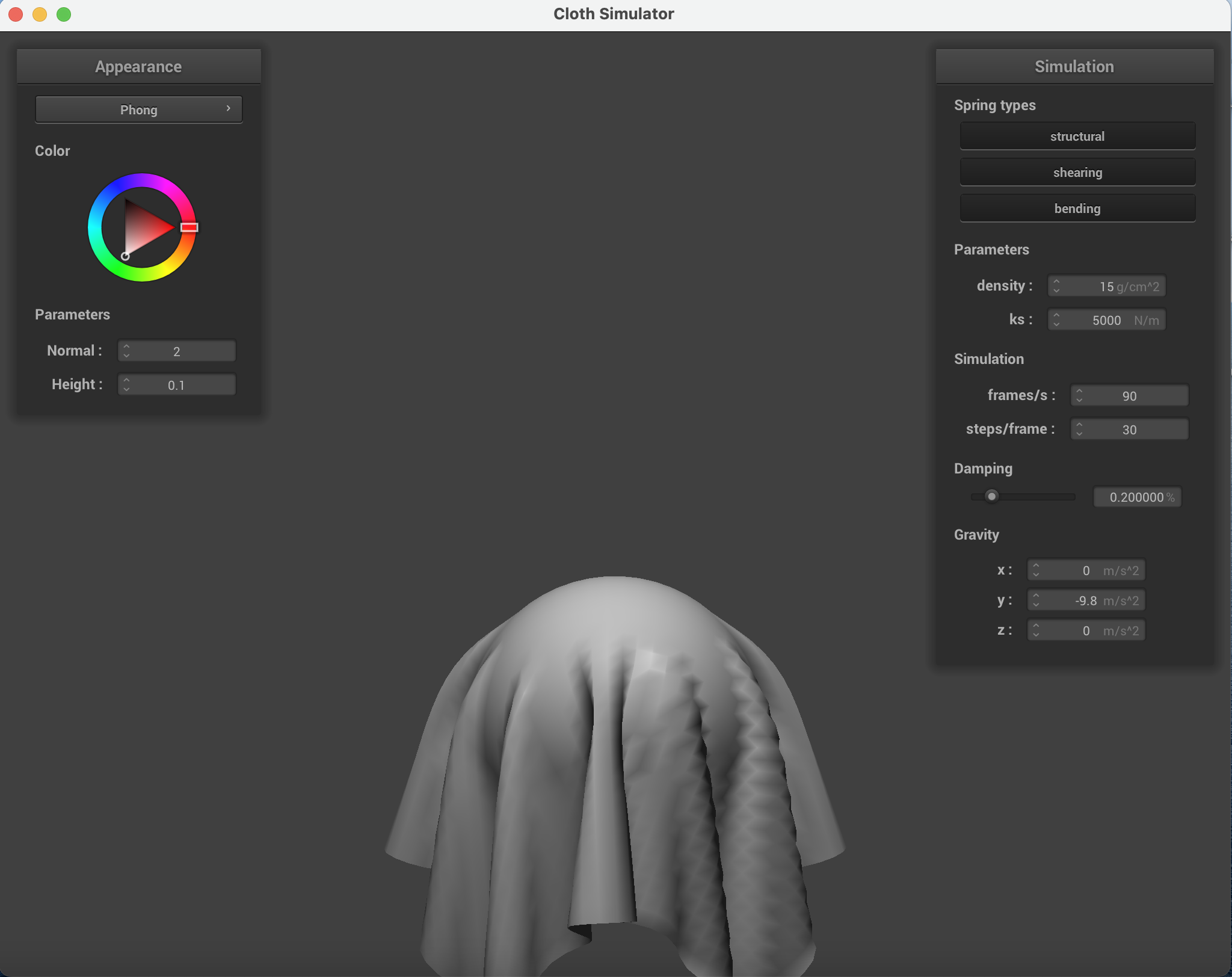

Only Specular Component	Entire Blinn-Phong Model

Show a screenshot of your texture mapping shader using your own custom texture by modifying the textures in /textures/.

We use the famous Lena image as texture filling.

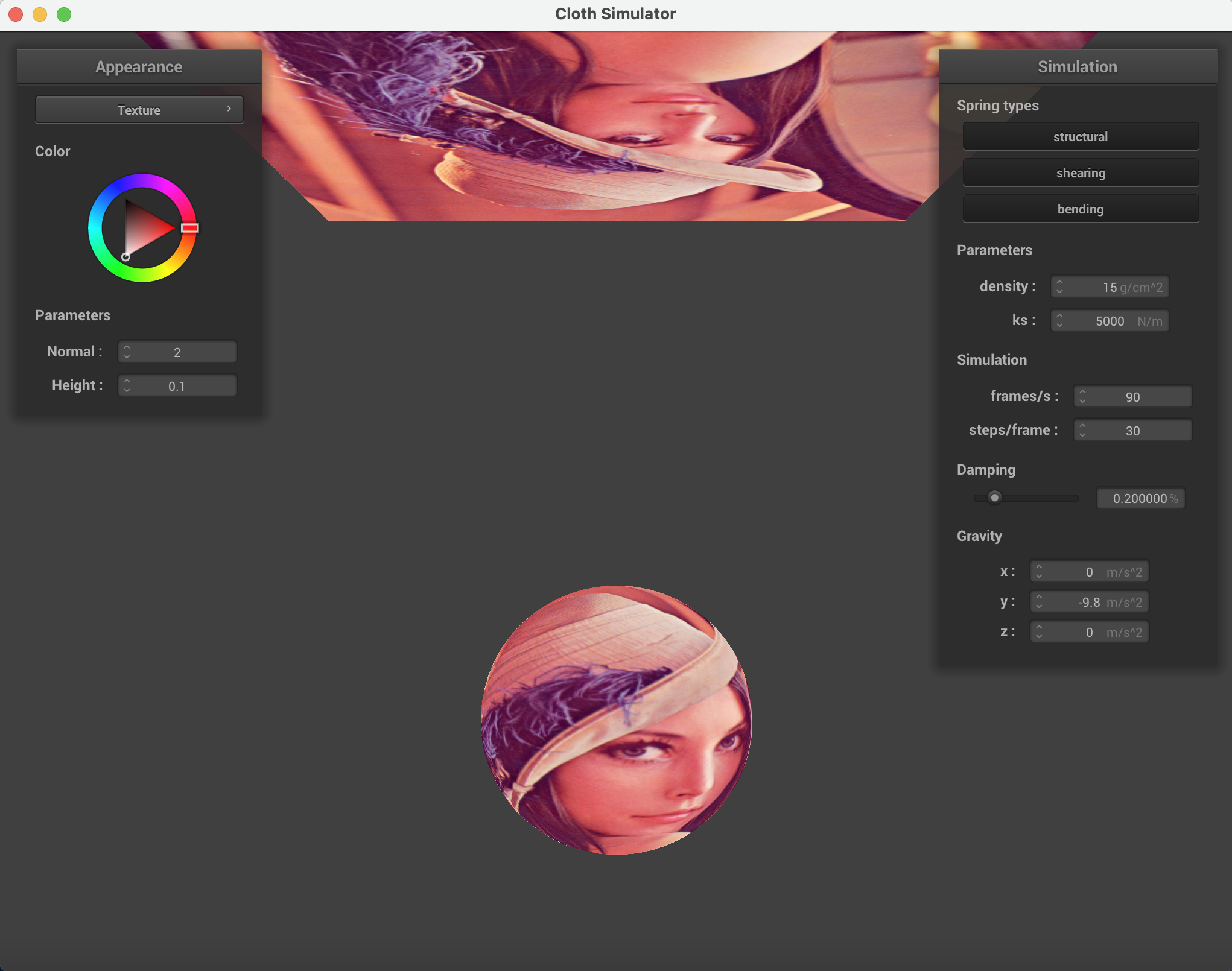

texture mapping shader on the sphere	texture mapping shader on the cloth

Show a screenshot of bump mapping on the cloth and on the sphere. Show a screenshot of displacement mapping on the sphere. Use the same texture for both renders. You can either provide your own texture or use one of the ones in the textures directory, BUT choose one that’s not the default texture_2.png. Compare the two approaches and resulting renders in your own words. Compare how your the two shaders react to the sphere by changing the sphere mesh’s coarseness by using -o 16 -a 16 and then -o 128 -a 128.

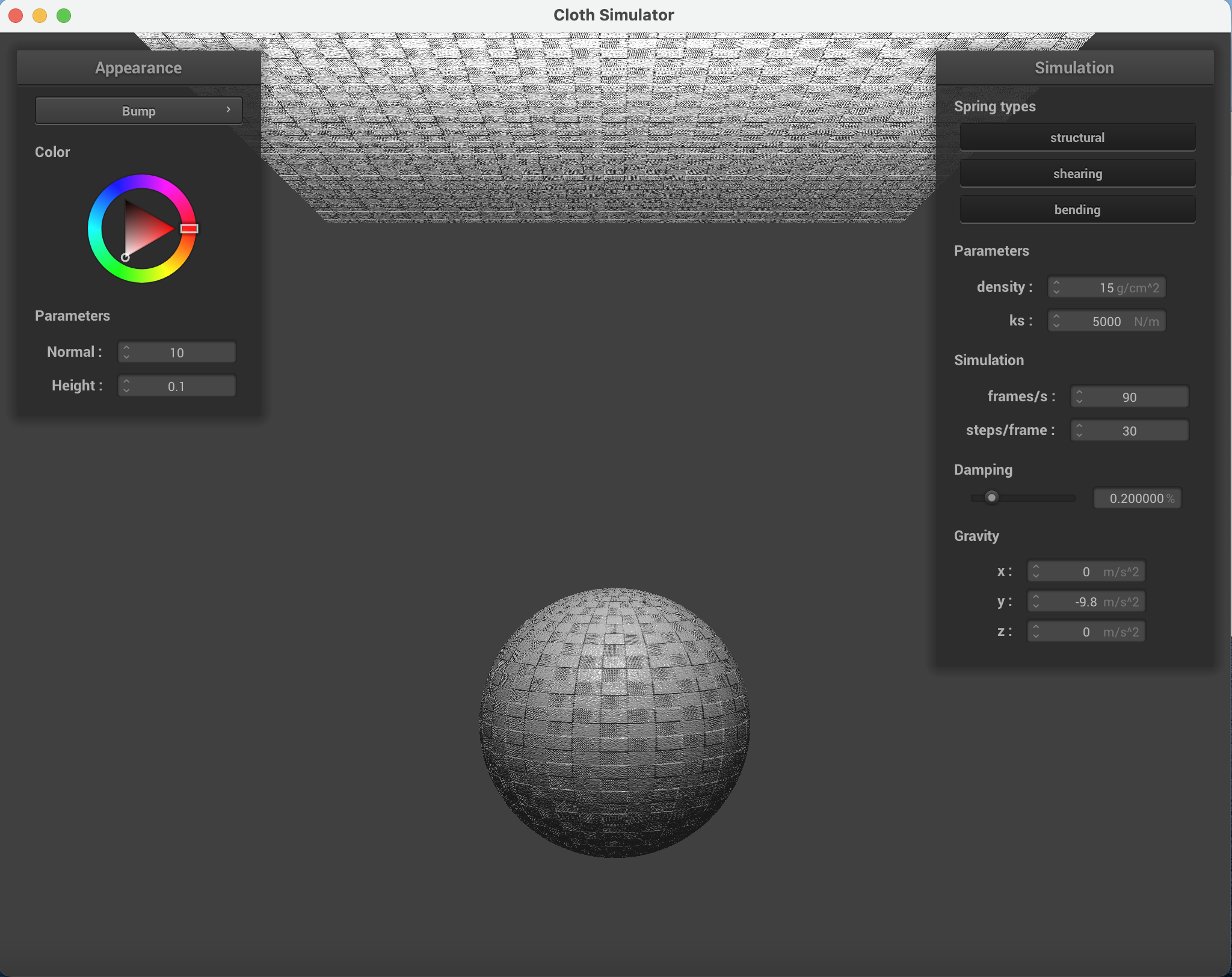

bump mapping on the sphere	bump mapping on the cloth

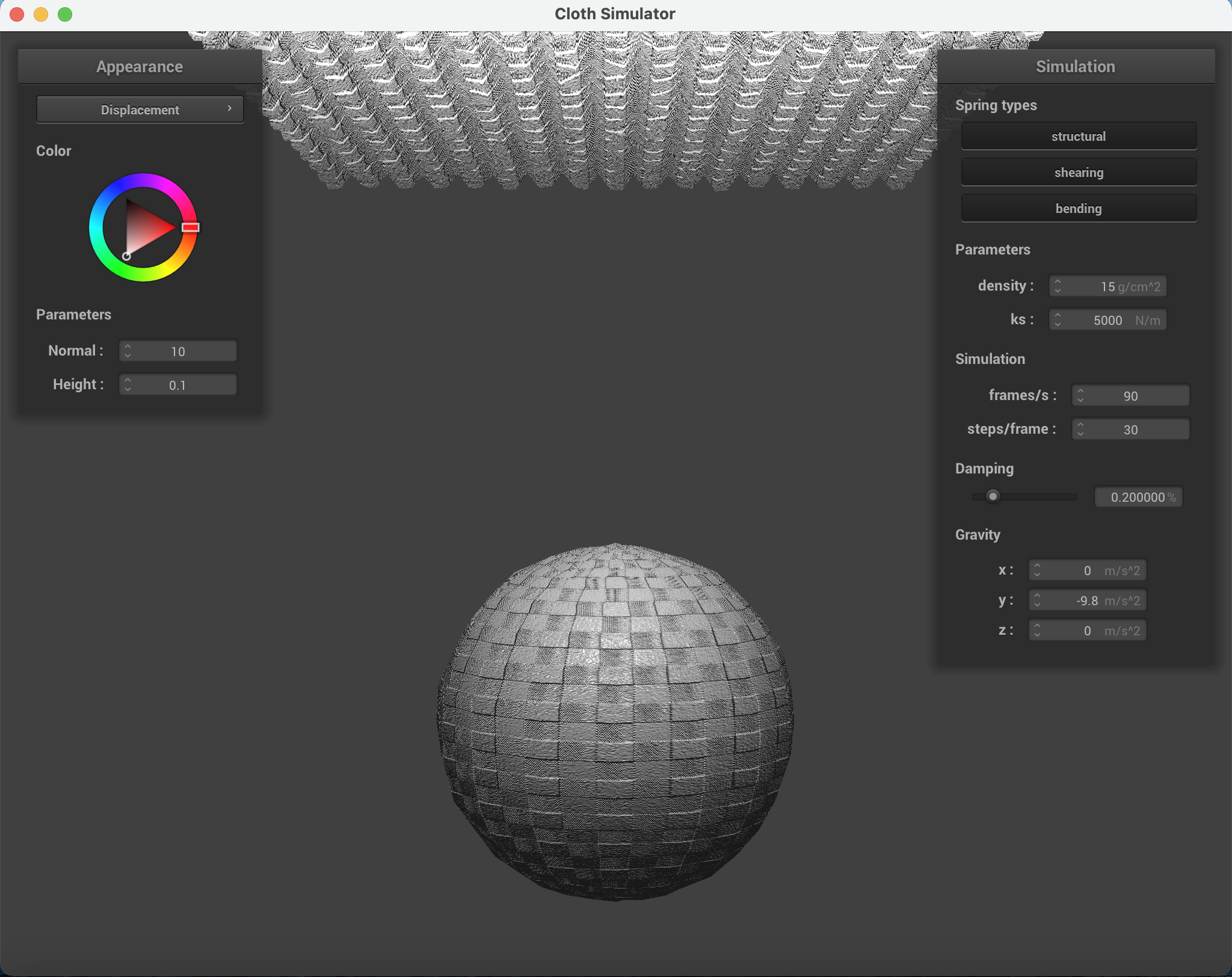

displacement mapping on the sphere	displacement mapping on the cloth

Comparison of two approaches:

From the figure above, we can see that the texture of bump mapping only exists on the surface of the object, and the object can still retain its original shape; Displacement mapping highlights the material of the object surface, making the surface of the sphere follow the texture and appear uneven. Compared with bump mapping, the surface is more rough and irregular.

origin	-o 16 -a 16	-o 128 -a 128

origin	-o 16 -a 16	-o 128 -a 128

Comparison of different mesh’s coarseness: By modifying mesh’s coarseness, we can see that coarseness has little effect on bump mapping. Because bump mapping itself does not affect the shape of the graphic surface, coarseness can only change some surface texture details; However, coarseness has a great impact on displacement mapping. We can see that when the parameter is 16, the graph is smoother than the original graph, and when the parameter is 128, the graph is coarser than the original graph, indicating that coarseness will be intuitively reflected in the roughness and shape change of the object surface in displacement mapping.

Show a screenshot of your mirror shader on the cloth and on the sphere.

mirror shader on the sphere	mirror shader on the cloth
